ASUS NUC 16 Pro vs MINISFORUM MS-02 Ultra
Check current prices
As an Amazon Associate I earn from qualifying purchases.

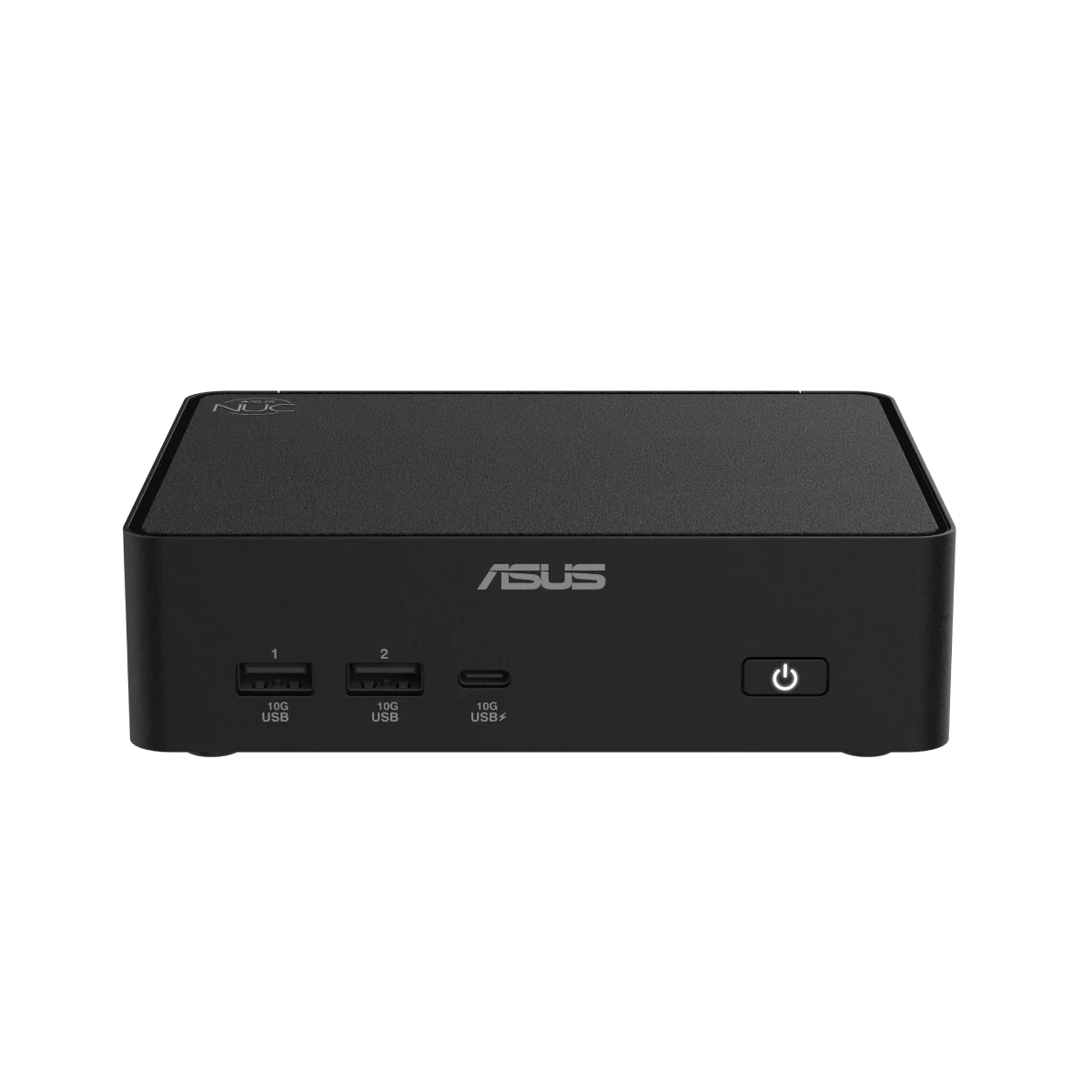

ASUS NUC 16 Pro
Core Ultra X9 378H, 64GB LPDDR5x, no storage

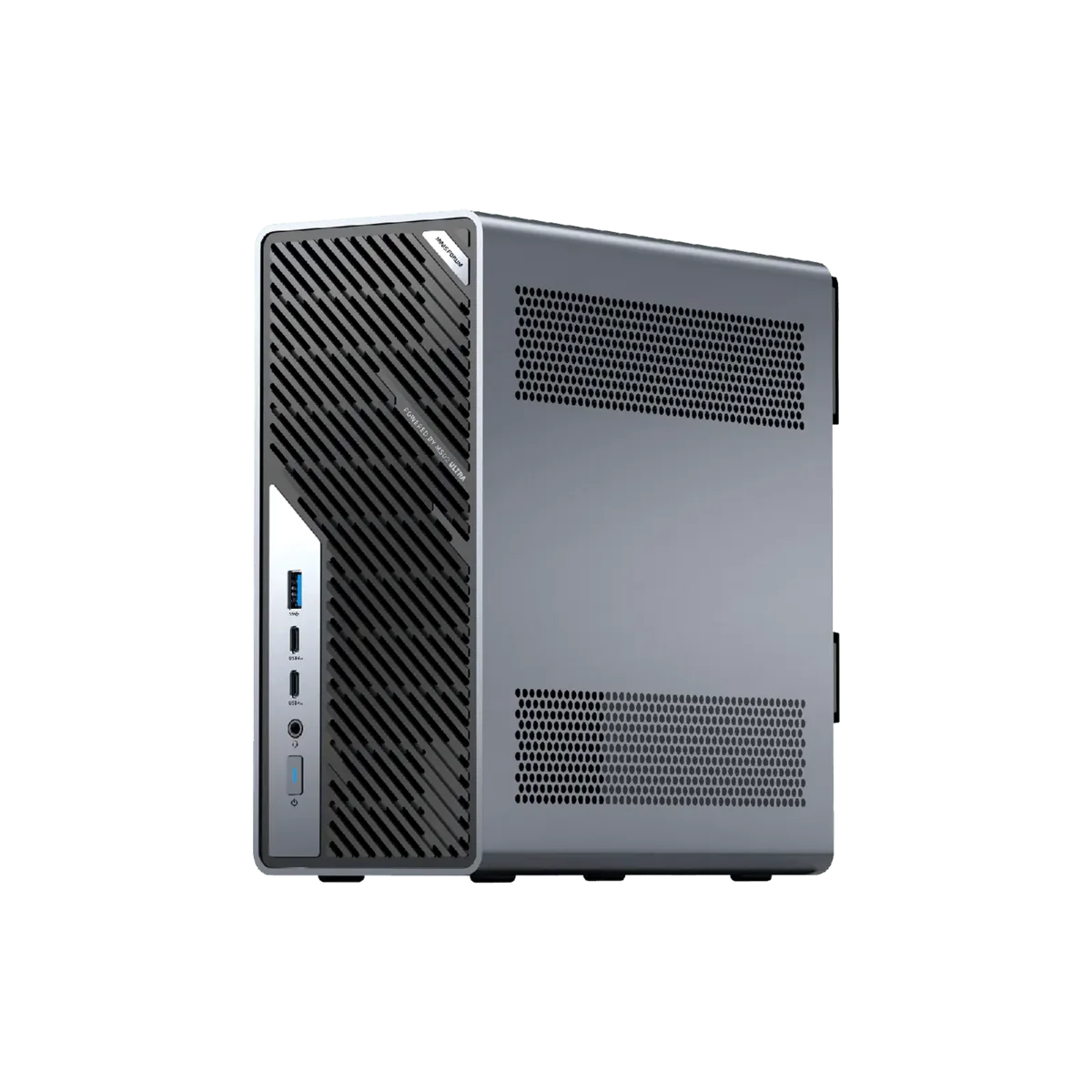

MINISFORUM MS-02 Ultra
Core Ultra 9 285HX barebone
Amazon results may include other models. Verify the processor, memory, storage, and seller before buying.
| Memory | ||
|---|---|---|
| Storage |
1Is it fast for normal work?
ASUS NUC 16 Pro
-
Single-core performance Among the reviewer's top results
Robtech placed the Core Ultra X7 review unit among the fastest systems in the reviewer's Cinebench single-core comparison, roughly level with the Ryzen AI 9 HX 470 result in that chart.
Cinebench single-core · Balanced mode; Core Ultra X7 358H review unit
Robtech · 6:28 -
Geekbench 6 single-core Not available
-
Geekbench 6 multi-core Not available
MINISFORUM MS-02 Ultra
-
Single-core performance Not available
-
Geekbench 6 single-core 2957 points
ETA PRIME's configured review system scored 2,957 in Geekbench 6 single-core with a 90 W PL1, 110 W PL2, and an RTX 5060 installed.
Geekbench 6 single-core · Core Ultra 9 285HX; 64GB RAM; 1TB SSD; RTX 5060; 90 W PL1 and 110 W PL2
ETA PRIME · 8:17 -
Geekbench 6 multi-core 17992 points
The same configured system scored 17,992 in Geekbench 6 multi-core.
Geekbench 6 multi-core · Core Ultra 9 285HX; 64GB RAM; 1TB SSD; RTX 5060; 90 W PL1 and 110 W PL2
ETA PRIME · 8:21
2Can it handle sustained work?
ASUS NUC 16 Pro
-
Multi-core power-mode delta Under 2.5% faster
In Robtech's Cinebench multi-core test, Performance mode improved the Core Ultra X7 review unit by just under 2.5% over its factory Balanced mode.
Cinebench multi-core · Performance mode compared with factory Balanced mode; Core Ultra X7 358H review unit
Robtech · 7:00 -
Sustained CPU cooling rating Not available
MINISFORUM MS-02 Ultra
-
Multi-core power-mode delta Not available
-
Sustained CPU cooling rating 100 W sustained
MINISFORUM states that the six-heatpipe, dual-fan cooler can sustain a 100 W CPU load and handle a 140 W turbo limit.
Manufacturer thermal-design rating · Core Ultra 9 285HX cooling system
MINISFORUM
3Can it game?
ASUS NUC 16 Pro
-
Shadow of the Tomb Raider 70 fps
Level1Techs reported 70 FPS with a 36 FPS 1% low at 1080p using the high preset.
Shadow of the Tomb Raider benchmark · 1080p high; Core Ultra X7 358H review unit
Level1Techs · 11:36 -
Shadow of the Tomb Raider with RTX 5060 Not available
MINISFORUM MS-02 Ultra
-
Shadow of the Tomb Raider Not available
-
Shadow of the Tomb Raider with RTX 5060 121 fps
With a low-profile RTX 5060 installed, ETA PRIME measured a 121 FPS average in the built-in benchmark at native 1440p very high without DLSS.
Shadow of the Tomb Raider built-in benchmark · 1440p very high; native resolution; DLSS off; low-profile RTX 5060
ETA PRIME · 10:34
4Is it loud or hot?
ASUS NUC 16 Pro
-
Maximum CPU temperature 99 °C
The Core Ultra X7 review unit reached 99 degrees Celsius in both tested power modes.
Maximum CPU load · Default and performance modes
Robtech · 14:25 -
All-core load noise 46 dBA
Robtech reported a maximum of 46 dBA with all CPU cores under load.
All-core CPU load · Core Ultra X7 358H review unit
Robtech · 14:48 -
Idle noise Not available
-
CPU stress noise Not available
MINISFORUM MS-02 Ultra
-
Maximum CPU temperature Not available
-
All-core load noise Not available
-
Idle noise 35 dBA
ServeTheHome reported about 35 dBA at idle in a studio with a 34 dBA noise floor.
Windows desktop idle · 34 dBA studio noise floor
ServeTheHome · 15:11 -
CPU stress noise 36 to 39 dBA
ServeTheHome reported 38 to 41 dBA during the initial fan ramp and 36 to 39 dBA after it settled.
CPU stress test after the fan ramp settled · Initial ramp reported separately as 38 to 41 dBA
ServeTheHome · 15:43
5How much electricity does it use?
ASUS NUC 16 Pro
-
Idle wall power 9 W
Robtech reported 9 W at idle for the Core Ultra X7 review unit.
Windows desktop idle · Core Ultra X7 358H review unit
Robtech · 14:03 -
Maximum wall power 115 W
Robtech reported just over 100 W in the default mode and 115 W with performance mode enabled.
Maximum system load · Performance mode; default mode reported separately as just over 100 W
Robtech · 14:08 -
CPU stress wall power Not available
-
25GbE adapter power Not available
MINISFORUM MS-02 Ultra
-
Idle wall power 18.3 to 20.6 W
ServeTheHome reported 18.3 to 20.6 W at idle with the Intel E810 25GbE adapter enabled.
Windows desktop idle · Intel E810 25GbE adapter enabled
ServeTheHome · 15:00 -
Maximum wall power Not available
-
CPU stress wall power 145 W
ServeTheHome reported a brief rise to about 190 W during a CPU stress test, followed by about 145 W at the system level after the initial burst.
CPU stress test after the initial burst
ServeTheHome · 15:37 -
25GbE adapter power 8 to 12 W
ServeTheHome estimated that disabling the Intel E810 25GbE adapter could reduce idle consumption by roughly 8 to 12 W.
Estimated idle-power reduction · Intel E810 25GbE adapter disabled
ServeTheHome · 14:30
6Can I upgrade and connect everything?
ASUS NUC 16 Pro
-
Memory is upgradeable No
-
Storage is upgradeable Yes
-
USB4 is present Yes
-
Different processor tested
Robtech tested the NUC 16 Pro with a Core Ultra X7 358H, not the catalog configuration's Core Ultra X9 378H.
Review-unit identification · Core Ultra X7 358H review unit
Robtech · 1:23 -
Review-unit memory 8533 MT/s
The review unit had 64 GB of soldered LPDDR5x memory running at 8,533 MT/s.
Hardware inspection · 64 GB onboard memory
Robtech · 4:56 -
Tool-free access
Robtech showed the chassis opening with a lever and no tools, with cooling provided for both M.2 slots.
Internal inspection
Robtech · 4:38 -
Internal expansion Not available
MINISFORUM MS-02 Ultra
-
Memory is upgradeable Yes
-
Storage is upgradeable Yes
-
USB4 is present Yes
-
Different processor tested Not available
-
Review-unit memory Not available
-
Tool-free access Not available
-
Internal expansion 4x M.2 and 3x PCIe
The 285HX model provides four M.2 2280 slots plus PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 4.0 x4 expansion slots; the 25GbE card occupies one internal slot as shipped.
Manufacturer expansion-layout check · MS-02U-285HX
MINISFORUM
7Is it good value?
ASUS NUC 16 Pro
-
US price not published US MSRP unavailable
ASUS identifies the exact NUC16GDKW9 configuration on its US specifications page but does not publish a US MSRP there, so the catalog does not assign a value score or convert a foreign-market price.
Manufacturer US pricing check · NUC16GDKW9, Core Ultra X9 378H, 64GB onboard memory, no storage or OS
ASUS -
Barebone list price Not available
MINISFORUM MS-02 Ultra
-
US price not published Not available
-
Barebone list price $1,449
MINISFORUM lists the Core Ultra 9 285HX barebone at $1,449 before temporary discounts.
Manufacturer retail-price check · Core Ultra 9 285HX barebone, US adapter
MINISFORUM
8Will it be dependable?
ASUS NUC 16 Pro
-
Limited warranty 3 years
ASUS states that NUC products purchased from authorized distributors include a three-year limited warranty covering the hardware supplied in the box.
Manufacturer warranty-policy check
ASUS -
Linux support Current Linux kernel recommended
Level1Techs described current-kernel Linux support as a first-class experience and showed a Thunderbolt external GPU working plug-and-play.
Linux compatibility and Thunderbolt eGPU check · Core Ultra X7 358H review unit
Level1Techs · 16:09 -
Setup complexity Not available
-
Seller warranty Not available
MINISFORUM MS-02 Ultra
-
Limited warranty Not available
-
Linux support Not available
-
Setup complexity Manual tuning recommended
NASCompares said the system was not at its best without manual tuning and cautioned that it required more setup work than a typical ready-to-use mini PC.
Review conclusion after configuration and testing · Core Ultra 9 285HX review unit with non-ECC memory
NASCompares · 25:07 -
Seller warranty 2 years
The MINISFORUM US store lists a two-year seller warranty for the MS-02 Ultra.
Manufacturer warranty-policy check
MINISFORUM
References
-
ASUS. ASUS USA technical specifications. Product page. Accessed .
Configuration: NUC16GDKW9, Core Ultra X9 378H, 64GB LPDDR5x, no storage or operating system
-
Robtech. Intel's Panther Lake is HERE! ASUS NUC 16 Pro Review. Video review. . Accessed .
Configuration: Core Ultra X7 358H, 64GB LPDDR5x-8533, Samsung PCIe 5.0 SSD of unstated capacity
Disclosure: Robtech identified the review unit as a manufacturer loan in the video description.
-
Level1Techs. A Panther Lake Mini PC: The Asus Nuc Pro 16 Benchmark and Review. Video review. . Accessed .
Configuration: Core Ultra X7 358H, 64GB onboard LPDDR5x, 1TB Samsung SSD
Disclosure: Level1Techs did not state how the review unit was acquired.
-
ASUS. Warranty Information for NUC Products. Product page. Accessed .
Configuration: ASUS NUC products purchased from authorized distributors
-
MINISFORUM. MINISFORUM product specifications. Product page. Accessed .
Configuration: Core Ultra 9 285HX barebone
-
ServeTheHome. The BEST 25GbE Homelab Node Minisforum MS-02 Ultra. Video review. . Accessed .
Configuration: Core Ultra 9 285HX, 64GB DDR5-4800, 1TB SSD, 25GbE adapter
Disclosure: ServeTheHome did not state how the review unit was acquired.
-
ETA PRIME. The Most Versatile Mini PC Ever! MS-02 Ultra First Look. Video review. . Accessed .
Configuration: Core Ultra 9 285HX, 64GB DDR5, 1TB SSD, Windows, low-profile RTX 5060; 90 W PL1 and 110 W PL2
Disclosure: ETA PRIME did not state how the unit was acquired; the description contains affiliate links and the video includes a sponsored software-key segment.
-
NASCompares. Minisforum MS-02 Ultra Review. Video review. . Accessed .
Configuration: Core Ultra 9 285HX, non-ECC memory and installed storage; capacities not stated
Disclosure: NASCompares said MINISFORUM supplied the hardware without payment or advance review; the description contains affiliate links.
Value for money
No value comparison is available. It requires eligible test scores and at least four current price observations in seven days.
Specification differences
Differences supported by the listed manufacturer specifications
Higher listed specifications for ASUS NUC 16 Pro
- Uses a smaller 0.71 liter enclosure
Higher listed specifications for MINISFORUM MS-02 Ultra
- Supports 192 GB more memory
- Provides 4 storage slots versus 2
Verified specifications
Manufacturer-sourced specifications and current testing status
Processor
| Specification | NUC 16 Pro | MS-02 Ultra |
|---|---|---|
| CPU | Intel Core Ultra X9 378H | Intel Core Ultra 9 285HX |
| Cores / threads | 16 / 16 | 24 / 24 |
| Processor default TDP | 25 W | 55 W |
| Integrated graphics | Intel Arc B390 | Intel Graphics |
Memory and storage
| Specification | NUC 16 Pro | MS-02 Ultra |
|---|---|---|
| Memory type | LPDDR5x-8533 onboard | DDR5-4800 ECC SODIMM |
| Maximum memory | 64 GB | 256 GB |
| Upgradeable memory | No | Yes |
| Storage slots | 2 | 4 |
Connectivity
| Specification | NUC 16 Pro | MS-02 Ultra |
|---|---|---|
| Ethernet | Dual 2.5GbE | Dual 25GbE + 10GbE + 2.5GbE |
| Wireless | Wi-Fi 7 + Bluetooth 6.0 | Wi-Fi 7 + Bluetooth 5.4 |
| USB4 | Yes | Yes |
| Thunderbolt | Yes | No |
Size and price
| Specification | NUC 16 Pro | MS-02 Ultra |
|---|---|---|
| Enclosure volume | 0.71 liters | 4.8 liters |
| List price | Not published | $1,449 |
| Product class | Business mini PC | Mini workstation |
