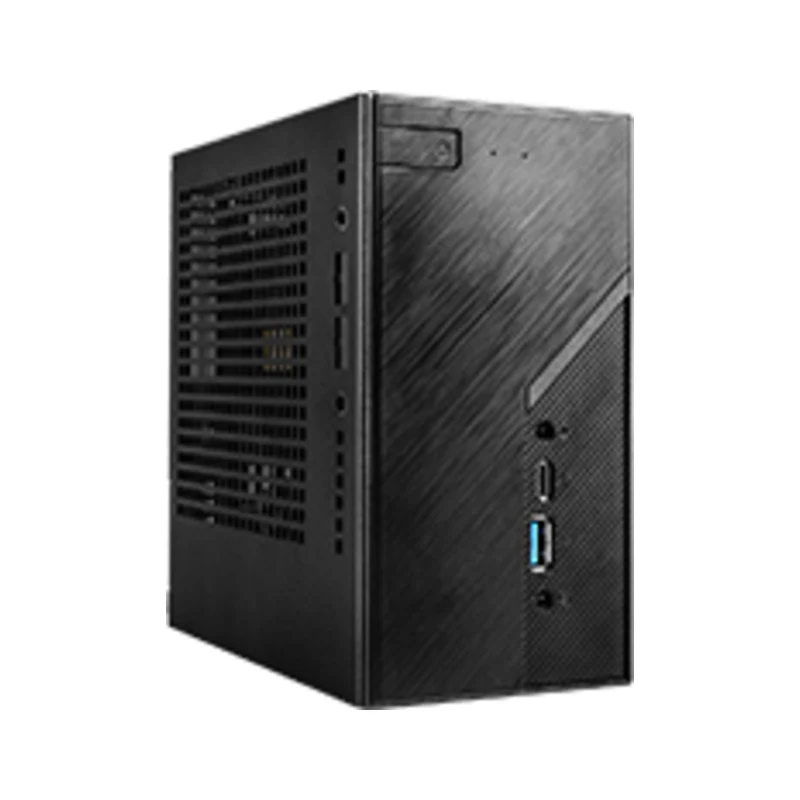

ASRock DeskMini B860 + Core Ultra 7 265
ASRock's 1.92-liter LGA1851 barebone supports a user-installed 65W Core Ultra 7 265, two DDR5 SO-DIMMs, four storage devices, Thunderbolt 4, four displays, and 2.5GbE; memory, storage, wireless, and an operating system are not included.
Image: - Configuration
- DeskMini B860 barebone with user-installed Core Ultra 7 265; no RAM, storage, Wi-Fi, or OS
- Processor
- Core Ultra 7 265
- Graphics
- Intel Graphics integrated in the Core Ultra 7 265
- Memory
- Up to 128 GB
- Storage
- 4 slots
- Current pricing
- Check price Affiliate link
1Is it fast for normal work?
-
PCMark 10 7016 points
CT.nl measured 7,016 points in PCMark 10 on the same DeskMini B860 chassis with a Core Ultra 5 235, 32GB of memory, and a 1TB SSD. The CPU differs from this reference configuration, so the result is not used in a score.
PCMark 10 · Core Ultra 5 235, 32GB RAM, 1TB SSD; partial chassis match
CT.nl · 0:00 -
Reference-build status Integrator builds available
Sycom and DunamisTek both offered complete DeskMini B860 systems with the 20-core Core Ultra 7 265, confirming a real build path. Their memory, storage, cooling, and software choices do not define this barebone record.
Exact-processor configuration verification · DeskMini B860 with Core Ultra 7 265
Sycom
2Can it handle sustained work?
-
Cinebench 2026 multi-core 5073 points
CT.nl measured 5,073 points in Cinebench 2026 multi-core with a Core Ultra 5 235. This is same-chassis evidence only and does not represent the 20-core Core Ultra 7 265.
Cinebench 2026 multi-core · Core Ultra 5 235, 32GB RAM, 1TB SSD; partial chassis match
CT.nl · 0:00 -
Power-envelope constraint 65W chassis class
Intel rates the Core Ultra 7 265 for 65W base power and up to 182W turbo power, while ASRock limits the DeskMini B860 to 65W processors and supplies a 120W adapter. Sustained 265 performance therefore depends on the chassis BIOS limits and cooler rather than the processor's unrestricted desktop maximum.
Processor and chassis power-specification check · Core Ultra 7 265 reference build
Intel
3Can it game?
-
3DMark Steel Nomad 333 points
CT.nl measured 333 points in 3DMark Steel Nomad using a Core Ultra 5 235. It is retained only as a same-chassis indication of the limited integrated Intel Graphics class, not as an exact Core Ultra 7 265 result.
3DMark Steel Nomad · Core Ultra 5 235 integrated graphics; partial chassis match
CT.nl · 0:00 -
No discrete-GPU slot Integrated graphics only
The Mini-STX chassis has no PCIe graphics-card position. Gaming and GPU-compute capability is limited to the four-Xe-core Intel Graphics engine integrated into the selected Core Ultra 7 265.
Expansion and processor-graphics specification check · DeskMini B860 with Core Ultra 7 265
ASRock
4Is it loud or hot?
-
Full-load loudness 1.7 sone
CT.nl measured 1.7 sone under full load with the Core Ultra 5 235 and its boxed Intel cooler, while idle and light GPU-only work stayed below 0.1 sone. The target 265 and cooler choice differ, so this is not scored.
Full system load · Core Ultra 5 235 with boxed Intel cooler; partial chassis match
CT.nl · 0:00 -
Cooler flexibility 47mm cooler clearance
ASRock permits CPU coolers up to 47mm tall. CT.nl recommended a larger-fan low-profile cooler such as the Noctua NH-L9i-17xx or Alpenfohn Silvretta to reduce the boxed cooler's load noise.
Chassis clearance and acoustic inspection · DeskMini B860 chassis
CT.nl
5How much electricity does it use?
-
Idle wall power 8.1 W
CT.nl measured 8.1 W at an idle Windows desktop with a UHD DisplayPort display attached on its Core Ultra 5 235, 32GB, and 1TB test build.
Windows desktop idle · Core Ultra 5 235, 32GB RAM, 1TB SSD, UHD DisplayPort display; partial configuration
CT.nl · 0:00 -
Full-load wall power 112 W
CT.nl measured 112 W at full load on its Core Ultra 5 235 build. The publication found that ASRock set both short and sustained CPU limits to 75W for that processor to stay within the adapter envelope.
Full system load · Core Ultra 5 235, 32GB RAM, 1TB SSD; partial configuration
CT.nl · 0:00
6Can I upgrade and connect everything?
-
Memory is upgradeable Yes
-
Storage is upgradeable Yes
-
Thunderbolt 4 is present Yes
-
Four storage positions 2x M.2 plus 2x SATA
The board provides one PCIe 5.0 x4 M.2 2280 slot, one PCIe 4.0 x4 M.2 2280 slot, and two SATA 6Gbps connectors for 2.5-inch drives up to 9.5mm thick. ASRock includes the proprietary SATA power/data cables.
Manufacturer specification and teardown · DeskMini B860 barebone
ASRock -
Fast external I/O TB4, 20Gbps USB-C, 2.5GbE
CT.nl measured up to 3.8GB/s through rear Thunderbolt 4, about 2.03GB/s through the front 20Gbps USB-C port, and roughly 300MB/s over 2.5GbE on its DeskMini B860 test build.
External storage and network throughput checks · Core Ultra 5 235 test build; chassis interfaces match
CT.nl -
Socketed processor Replaceable LGA1851 CPU
Unlike most mini PCs, the LGA1851 processor can be replaced independently. ASRock officially limits the system to supported Core Ultra Series 2 processors at 65W or below and requires integrated graphics because the chassis has no GPU slot.
Manufacturer CPU-support and expansion check · DeskMini B860 barebone
ASRock
7Is it good value?
-
Barebone price $295 barebone
A US eBay importer listed exact global part 90BXG5501-A10GA0W for $295 when checked. ASRock did not publish a global USD MSRP, and the listing does not include the Core Ultra 7 265, memory, storage, wireless, or Windows.
Exact-part retail-price check · 90BXG5501-A10GA0W barebone only
eBay -
Processor cost is separate $384-$394 CPU RCP
Intel publishes a recommended customer price range of $384 to $394 for the boxed Core Ultra 7 265. The total working-system cost must also include memory, storage, wireless if wanted, and an operating system.
Processor price and included-components check · Boxed Core Ultra 7 265
Intel -
Amazon availability No exact ASIN found
No exact Amazon listing was found for global barebone part 90BXG5501-A10GA0W or the defined Core Ultra 7 265 reference build.
Exact retailer-identity search · DeskMini B860 and Core Ultra 7 265 reference build
ASRock
8Will it be dependable?
-
Replaceable core components CPU, RAM, storage serviceable
The socketed CPU, two SO-DIMMs, two M.2 drives, two SATA drives, and optional wireless module are independently replaceable. This avoids the motherboard-level memory and storage repair limits common to soldered mini PCs.
Hands-on assembly and serviceability inspection · DeskMini B860 barebone
CT.nl -
Split warranty responsibility Component-level warranties
Because this is a parts build, the barebone, processor, memory, storage, and optional wireless card may each have separate warranty providers and terms. ASRock's global product page does not publish one universal coverage period for part 90BXG5501-A10GA0W.
Warranty-scope review · User-assembled reference build
ASRock -
Firmware support B860M-STX BIOS updates active
ASRock continued publishing B860M-STX firmware updates in August 2026, including CPU microcode, Intel Management Engine, and compatibility changes. Builders should verify CPU support and update procedure before changing processors.
Manufacturer firmware-support check · B860M-STX motherboard
ASRock
References
-
ASRock. DeskMini B860 Series. Product page. . Accessed .
Configuration: DeskMini B860 barebone, B860M-STX, LGA1851, 120W adapter; no CPU, memory, storage, wireless, or OS
Disclosure: Manufacturer specifications and official product gallery. The selected Core Ultra 7 265 is a separate reference-build component, not an included ASRock part.
-
ASRock. ASRock Support - DeskMini B860 Series. Product page. Accessed .
Configuration: DeskMini B860 Series and B860M-STX firmware
Disclosure: Manufacturer firmware and support index.
-
Intel. Intel Core Ultra 7 Processor 265 Specifications. Product page. . Accessed .
Configuration: Core Ultra 7 265 desktop processor, 20 cores, 20 threads, 65W base power, integrated Intel Graphics, FCLGA1851
Disclosure: Processor-manufacturer specifications and recommended customer price.
-
CT.nl. Asrock DeskMini B860 review: krachtige barebone voor op kantoor & thuis. Product page. . Accessed .
Configuration: DeskMini B860 with Core Ultra 5 235, 32GB RAM, 1TB SSD, Windows 11, boxed Intel cooler
Disclosure: The article contains advertising and an Amazon shop link. No test-unit source or sponsored-content disclosure was found in the accessible article.
-
Sycom. Radiant SPX3300B860i product announcement. Product page. . Accessed .
Configuration: Complete DeskMini B860-based Radiant SPX3300B860i with Core Ultra 7 265, Windows 11 Home, and system-integrator-selected components
Disclosure: System-integrator product announcement used only to verify that the exact 65W processor is offered in this chassis.
-
eBay. ASRock Barebone DeskMini B860 HDMI/DP/TB4 black DDR5. Product page. Accessed .
Configuration: Global barebone part 90BXG5501-A10GA0W; no CPU, RAM, storage, wireless, or operating system
Disclosure: Third-party importer listing used for exact part identity and current US-dollar barebone price only.
Processor and graphics
| Processor | Intel Core Ultra 7 265 |
|---|---|
| CPU layout | 20 cores / 20 threads |
| Processor default TDP | 65 W |
| Integrated graphics | Intel Graphics integrated in the Core Ultra 7 265 |
Memory and storage
| Memory type | 2x DDR5-5600 SO-DIMM slots; DDR5 CSODIMM up to 7200 MT/s overclocked |
|---|---|
| Maximum memory | 128 GB |
| Upgradeable | Yes |
| Storage slots | 4 |
Connectivity and size
| Ethernet | Realtek RTL8125BG 2.5GbE RJ45 |
|---|---|
| Wireless | Optional M.2 2230 Wi-Fi/Bluetooth module; none included |
| USB4 | Yes |
| Thunderbolt | Yes |
| Enclosure volume | 1.92 liters |
